Forescout Cloud Navigation

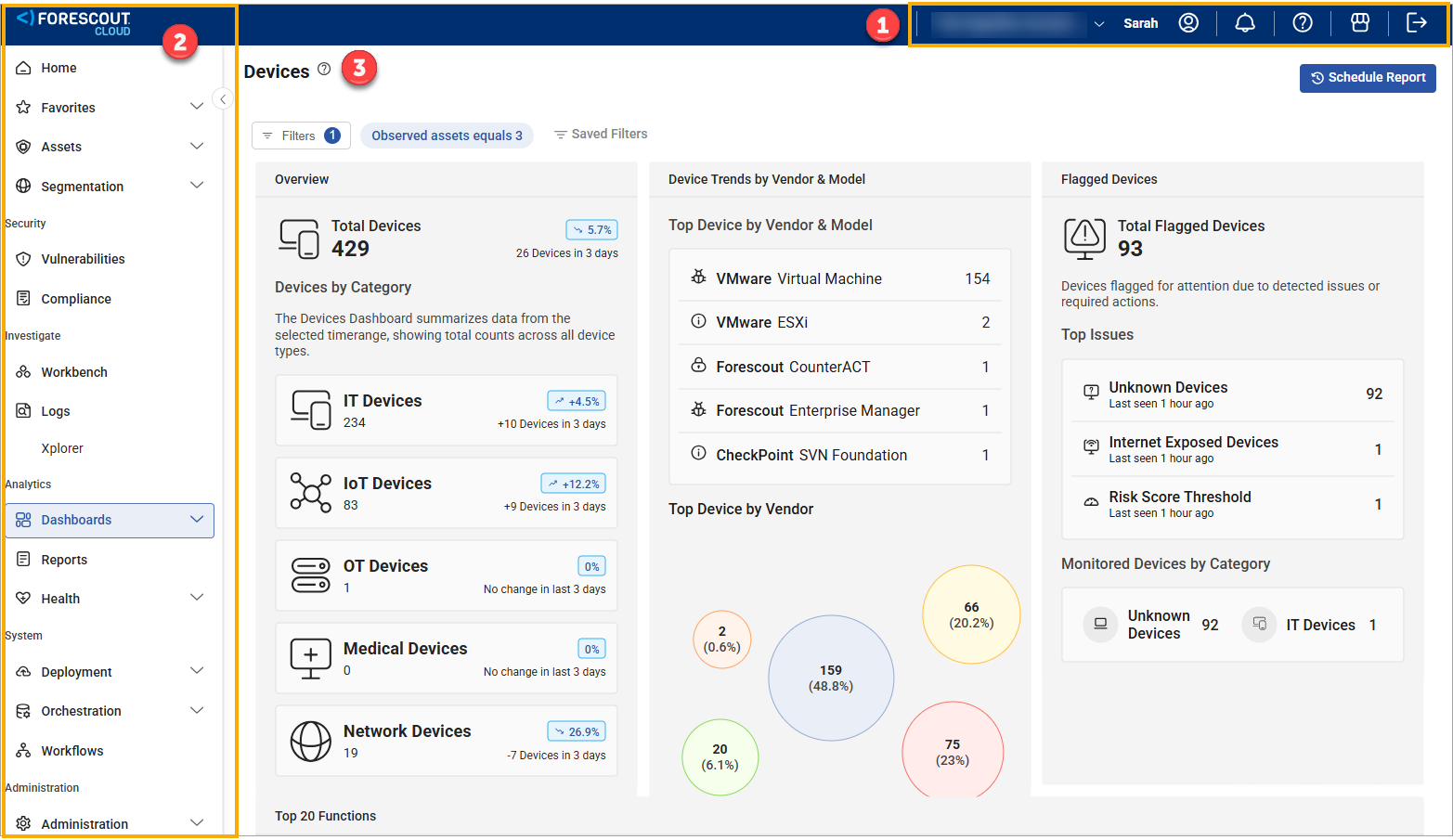

The Forescout Cloud user interface (UI) consists of three main sections: User and environment settings, navigation, and the main display pane.

1. User and environment settings

In the top banner of the Forescout Cloud page, you can find the User and Environment settings.

Here, you can:

Select your Forescout Cloud environment (ex: eyeFocus Demo).
Open and modify your User Settings.
Access the help files, searching, and Forescout Support pages.
Sign out.

2. Navigation pane

From this side panel, you can navigate the features of Forescout Cloud.

You can expand or collapse the navigation pane using the horizontal arrow button on the side. You can expand or collapse the list of available features using the vertical arrows next to features with multiple selections under them (ex: Dashboards, Logs).

You can also mark your most frequently used features as Favorites using the star button in the navigation pane. This adds the feature to the top of the navigation pane, allowing you to access it more quickly.

3. Main display pane

The main display pane is where everything you need to see and do in Forescout Cloud is displayed, whether that's asset data, device utilization dashboards, log searching, reports, or administration and configuration, and more.

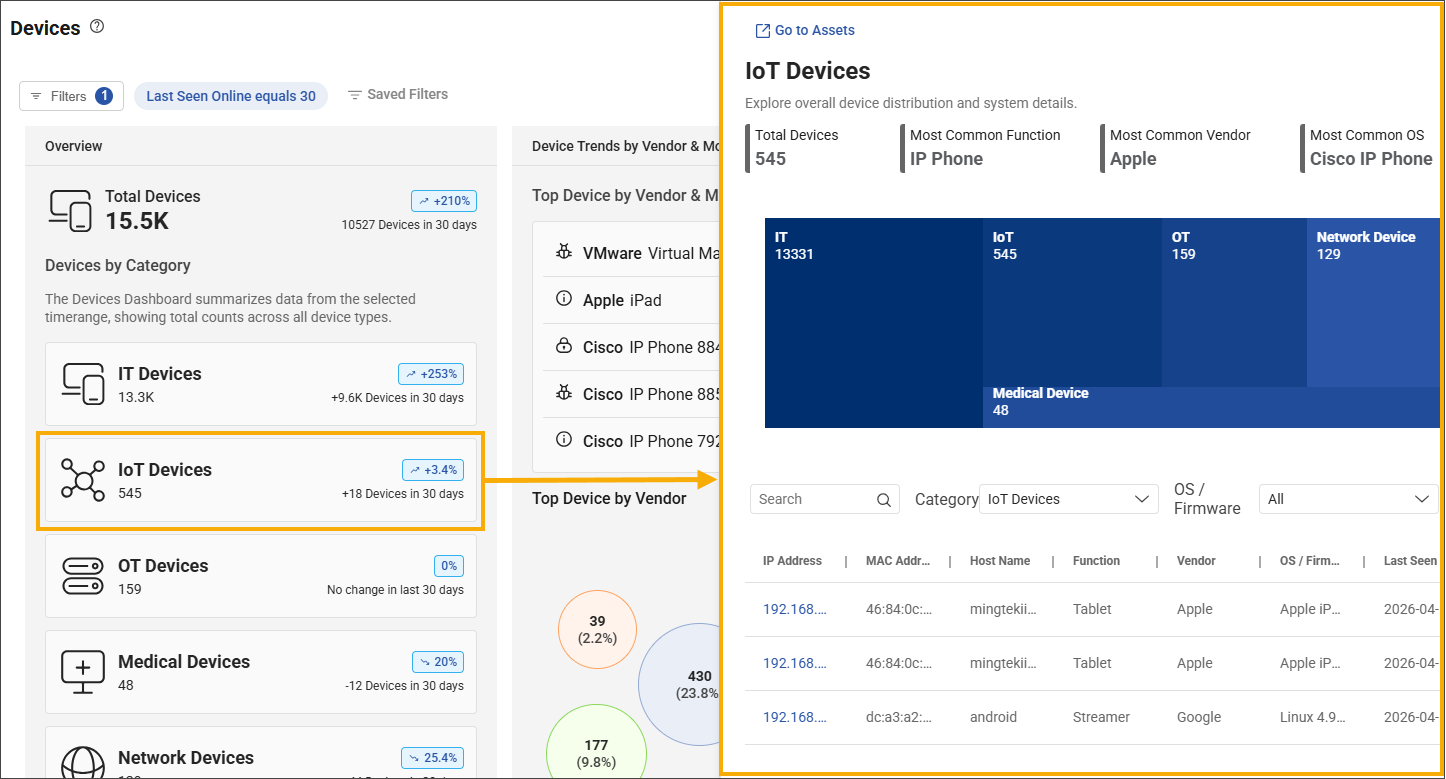

When interacting with this pane, additional information or configuration drawers will open to the side of the pane, depending on the type of information or the feature that you're working with. For example, if you click on a widget in a dashboard, the widget details drawer opens.
