Access to Forescout eyeSight network endpoints - scope

Use the Scope pane to grant and limit access to specific IP address ranges or segments in the Console or web portals. Users can only see or control the following Forescout features in the ranges or segments assigned to them:

  • Policy Management
  • Segment Management
  • Group Management
  • Organizational Units
  • All tools listed in the Forescout Options window, with the exception of the Console Preferences folders
  • Check for Updates
  • Lists

If a user's scope does not include a particular segment, options for that segment are grayed out (disabled) and/or messages are displayed in toolbars or dialogs.

images/image629.png

images/image630.png

To allow users access to a specific range but limit their access to a specific feature, grant Scope access and then limit Permissions for that feature. For example, grant users permission to view the entire network range while restricting their access to Appliance configuration features.

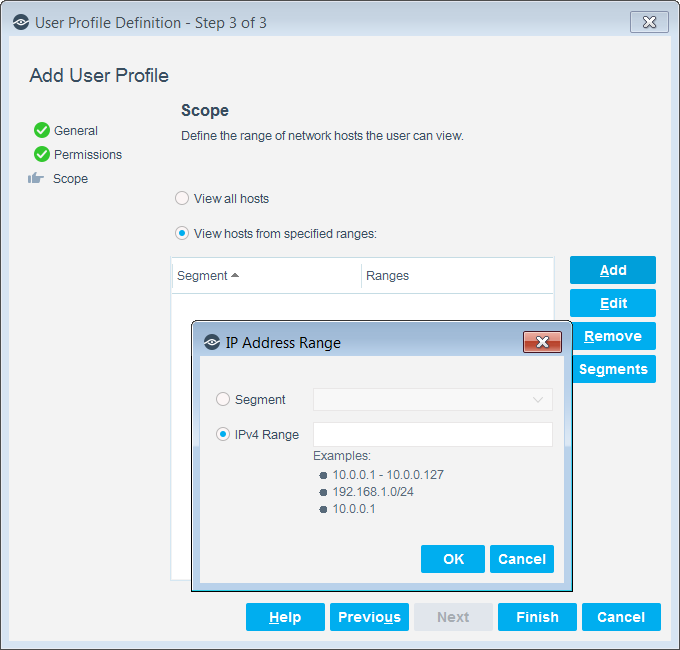

To limit the Scope access:

  1. Select View hosts from specified ranges.
  2. To add a single range or segment, select Add.


  3. In the IP Address Range dialog box, enter the range or segment you want the user to be able to access, and select OK.
  4. To add multiple segments, select Segments, select the appropriate segments, and select OK.
  5. Select Finish. The user definition is displayed in the CounterACT User Profiles pane.
  6. Select Apply.
