Upgrade One or More Appliances



Note: The screens shown in this procedure are examples, and may not reflect the version or build you are upgrading.

To upgrade Appliance software:

Note: Before you can upgrade Appliances that are managed by an Enterprise Manager, you must first upgrade the Enterprise Manager separately. Upgrades do not propagate automatically from an Enterprise Manager to its managed Appliances. See Upgrade the Enterprise Manager.
Note: This procedure assumes that you have already upgraded the Enterprise Manager that manages the Appliances.
  1. Download or obtain the upgrade file (FSP) and save it to your computer.
    Note: After the Enterprise Manager is upgraded, use the same FSP file to upgrade the managed Appliances. This ensures that you upgrade all devices to the same software version.
  2. Select Tools > Options. Devices or Appliances are shown with their current version.

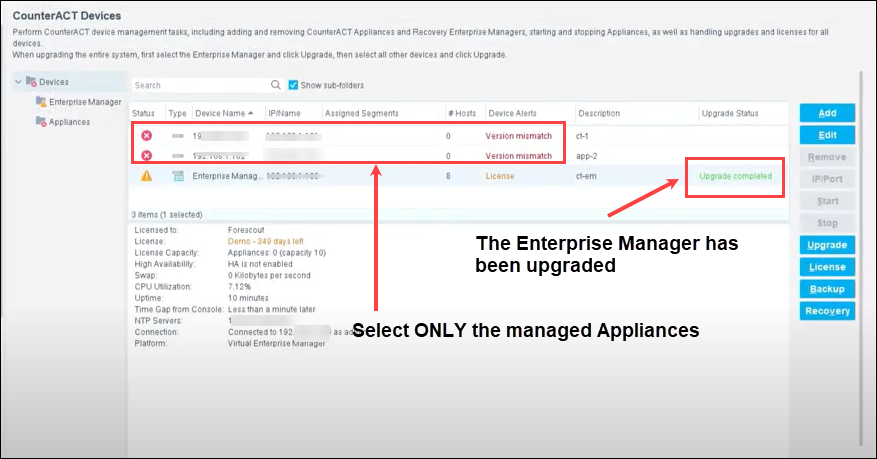

    Note: After the Enterprise Manager is upgraded, the managed Appliances display a Version mismatch alert.
  3. Select the Appliances, and then select Upgrade.


  4. Select the scope of the upgrade:
    • Upload Only. Upload the file to the device but do not begin the upgrade.
    • Upload and Upgrade. Upload the file to the device and begin the upgrade.
    • Upgrade. Upgrade from the uploaded file. Only available after the file has already been uploaded to the Enterprise Manager.
  5. Select Browse..., locate the upgrade file you saved on your computer and select OK. After verification of the file's digital signature, the Forescout Upgrade screen appears.


    images/image13.png

    images/image14.png

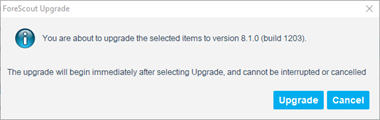

  6. Select Upgrade. Once you confirm, the upgrade process proceeds to completion and cannot be interrupted or canceled.


    images/image15.png

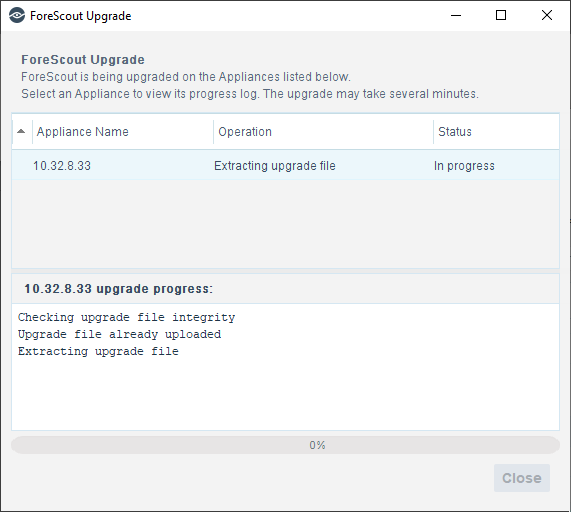

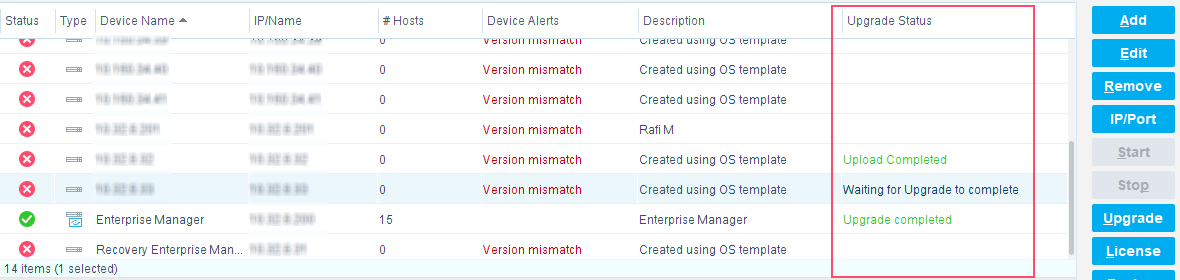

  7. Review the Forescout Upgrade dialog box to see the status of the upgrade process. You can close the dialog box and continue to see the status in the Upgrade Status column of the CounterACT Devices pane. This column disappears when the upgrade has completed for all CounterACT devices in the deployment.


    images/image16.png

    Note: If the upgrade of the second node and the synchronization are not shown in the log, you can verify status via icons on the Console status bar:

    Icon

    Description

    images/image8.PNG

    Indicates the status of the High Availability Appliances connected to the Enterprise Manager.

    images/image9.PNG

    Indicates the status of the Enterprise Manager High Availability pair.

    images/image10.png

    Indicates that High Availability is down on the Appliance.

    images/image11.PNG

    Indicates that High Availability is down on the Enterprise Manager.

  8. When the upgrade is completed successfully, select Close. If the upgrade is not successful, contact your Forescout representative. Do not continue with more upgrades.
    The Forescout Upgrade dialog box shows the status of the upgrade process and displays any error messages for the process.
