Forescout eyeSight policy main rule advanced options

Update a Policy Recheck for Unmatched and Matched Endpoints

By default, both matched endpoints and unmatched endpoints are rechecked every eight hours, and on any admission event. An admission event is a network event that indicates the admission of an endpoint into the network, such as when it physically connects to a switch port. A complete list of admission events is described below.

Recheck tools let you define:

How often endpoints that match a policy are rechecked
Under what conditions to perform recheck

You can update the default setting for matched and unmatched hosts, for example, to initiate inspection according to a set schedule. You can also configure several recheck settings to work simultaneously, for example, when a host IP address changes every five hours.

Separate settings can be defined for hosts that either match or do not match a policy.

To define rule recheck settings:

Right-click a Main Rule from the Policy Manager, and then select Quick Edit > Advanced.

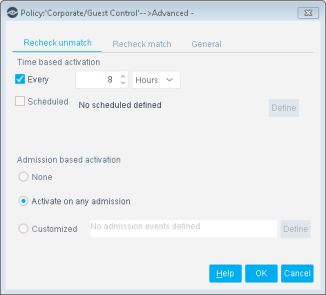

Select the Recheck unmatch or Recheck match tab.

images/image166.png

Update a Policy Recheck for Unmatched and Matched Endpoints

By default, both matched endpoints and unmatched endpoints are rechecked every eight hours, and on any admission event. An admission event is a network event that indicates the admission of an endpoint into the network, such as when it physically connects to a switch port. A complete list of admission events is described below.

Recheck tools let you define:

How often endpoints that match a policy are rechecked
Under what conditions to perform recheck

You can update the default setting for matched and unmatched hosts, for example, to initiate inspection according to a set schedule. You can also configure several recheck settings to work simultaneously, for example, when a host IP address changes every five hours.

Separate settings can be defined for hosts that either match or do not match a policy.

To define rule recheck settings:

Right-click a Main Rule from the Policy Manager, and then select Quick Edit > Advanced.
Select the Recheck unmatch or Recheck match tab.

images/image166.png

Admission-Based Activation

The following options are available:

None

Do not inspect on the basis of an admission event.

Activate on any admission

Run the policy when any of the following admission events occur:

New IP: By default, endpoints are considered new if not previously detected on your network within a 30-day period. For example, if an IP address was detected on the first of the month, and then detected again 31 days later, the detection will initiate the activation. The default time period can be changed. See Policy Preferences for details.

IP Address Change

Switch Port Change

DHCP Request

Authentication via the HTTP Login action

Log in to an authentication server

SecureConnector connection

If you have installed plugins or modules, additional admission events types may be available. For example, the New Wireless Host Connected Events option is available if you installed the Wireless Plugin.

Customized

Admission-based inspection. Select Define to customize the admission values.

Note: A delay exists between the detection of network admission events and the onset of the policy evaluation. When an endpoint boots, the IP address is assigned rather quickly, before most of its services have loaded. Waiting 30 seconds (default delay time) increases the chances that the policy evaluation starts when more details could be learned about the endpoint (after all services have loaded). You can update the delay default time. See Policy Preferences for details.

Handle Forescout eyeSight policy dated information - General tab

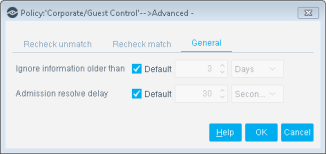

To define how dated information is handled, right-click a rule from the Policy Manager, and then select Quick Edit > Advanced, and then select the General tab.

images/image165.png

Ignore information older than

The time information should be stored and used for evaluation. The value set here overrides global settings for this policy. For example, you can define a schedule that evaluates the policy every two days, but only use information one day old for evaluation.

Admission resolve delay

Delay policy evaluation for newly discovered endpoints. This enables all services to load on a newly booted endpoint before policy evaluation.

This delay is applied only after a New Host admission event. It does not influence policy evaluation after other admission events.

This delay applies only to properties resolved by directly examining the endpoint. It does not impact properties that are learned from other sources.

The value you set here applies only to this policy, and overrides the global Network Admission Resolve Delay setting (Options > NAC > Time Settings).

Set and Increment Forescout eyeSight policy counters

This topic describes properties and actions to set and evaluate counters in policies. Policies can trigger actions based on counters assigned and incremented previously by other policies. This lets you use endpoint history in policies.

For example, if an endpoint repeatedly installs pluggable memory devices, you can initiate actions on the endpoint after this behavior is repeated several times. Use counters to take into account hot-swap memory, and identify problematic repeat users.

When using counters in policies:

Counters are incremented when:
- The endpoint meets the conditions of the policy, and the counter is initialized.
- Host properties change. The policy examines the endpoint and finds that it no longer satisfies the policy.
- Host properties change again. The policy examines the endpoint again and finds that it satisfies the policy. The counter is incremented.
This is how Forescout eyeSight evaluates other policy conditions. However, counter values are retained even when the endpoint no longer satisfies the conditions of the policy.
Note: Counters are maintained per endpoint. The same counter can have a different value for each endpoint.
Use properties and actions related to counters as follows:
When you create a policy rule that defines a new counter, use only the Set Counter action.
A policy rule that increments an existing counter must use both the Counter property and the Set Counter action:
- The rule contains a condition that uses the Counter property to verify the presence of the counter for an endpoint. Enable the Evaluate irresolvable criteria as True option when the Counter property is used to verify the presence of a new counter.
- Then the rule uses the Set Counter action to increment the counter on endpoints that match the condition.
